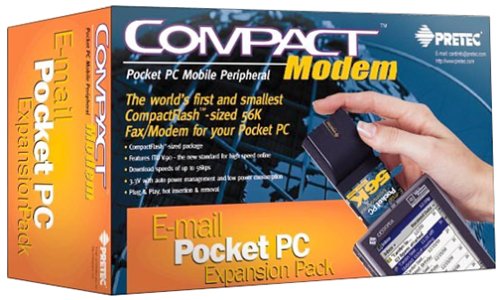

Pretec Compact Flash Modem 56k
|
|

 |
Pretec Compact Flash Modem 56k
- Fax/modem card for Pocket PCs and Windows CE devices with a CompactFlash slot
- Supports both CompactFlash I and II card slots
- Up to 56 Kbps download data transmission, 14 Kbps fax
- Plug and play with hot insertion and removal
- Connect to a standard (analog) phone line and you're ready to go
Technical data
- Telephone interface: RJ-11C, standard analog
- Device compatibility: All handheld PCs with Windows CE version 2.0 or higher; all HP Handheld PCs; HP Jornada Pocket PCs in series 420, 430, 540, and Pro 820; Casio Cassiopeia E-15, E-100, E-105, E-115 (not E-10 or E-11); all Compaq Aero Pocket PCs; Everex Executive A-10, A-15, A-20, and FreeStyle 540; Philips Nino 500; Philips Nino 319 (requires long-neck CF extender); TRG Palm OS devices; Apple MessagePad 2000 and 2100 series (requires long-neck CF extender)
- System requirements: CompactFlash slot (Type I or II) or PCMCIA Type II slot (with optional adapter); PC with an 80386 processor higher and at least 4 MB RAM
- System compatibility: DOS; Windows 3.x, 95, 98, CE, and NT; Newton MessagePad
- Data modem: ITU-T V.90 and K56flex, 56 Kbps down to 28.8 Kbps
- Flow control: Hardware (RTS/CTS) and software (XON/XOFF)
- Speaker signal: Available to host for call progress monitoring
- Fax modem: Send and receive up to 14.4 Kbps
- Voice modem: Enhanced ADPCM
- Audio span: ITU-T V.61 modulation (4.8 Kbps data plus audio), handset, headset, or half-duplex speakerphone
- Modem diagnostics: Local analog lookback test, local analog lookback with self-test, local digital lookback test, remote digital lookback with self-test
- Receiver sensitivity: -43 dBm
- Transmit level: -10 dBm normal
- Dynamic range: 34 dB (from -9 to approximately -43 dBm)
- Operating voltage: 3.3 volts +/- 5 percent
- Operating mode: 0.2 watts typical
- Sleep mode: User-programmable inactivity timer for sleep mode with wake-up via ring signal detection or any AT command
REVIEWS
|  |
None Available
PRICING & OPTIONS
| |
Pretec Compact Flash Modem 56k, £86, RRP
